17K BTU Professional Dual Ring BurnerAllows you to go from one small flame for precise simmering to a dual flame for powerful boiling, all on the same burner.

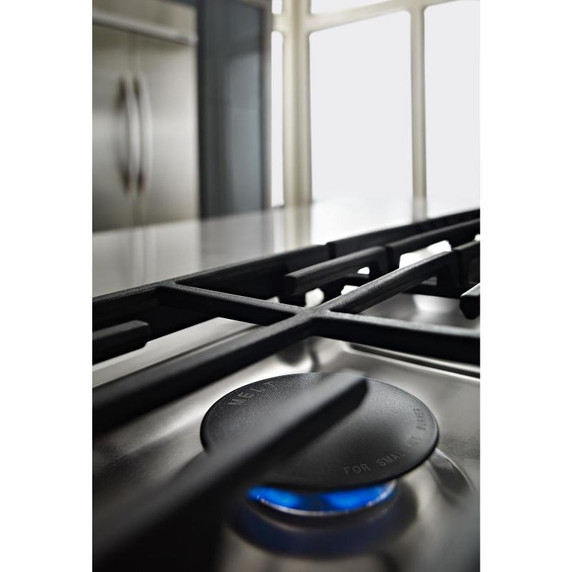

6,000 BTU Even-Heat™ Simmer BurnerA diffuser plate allows more control of the flame at the lowest setting, for more precise simmering and melting.
CookShield Finishprotects the cooktop from stains that may
occur with high temperature cooking. The
permanent finish makes it easy to wipe clean
without harsh chemicals so it looks clean,
bright and beautiful even longer.
Electronic IgnitionAutomatically lights burners so no standing pilot light is needed
Full-Width Cast-Iron GratesEnhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface.
Multi-Finish KnobsEnhance the look of the cooktop surface with sturdy construction that adds to their premium feel.
LP Conversion Kit IncludedAllows you to convert the cooktop so it can be used with LP gas.
Specifications
Country Of OriginUSA
Extended Service Plan ParentEW07IW2Y, EW07IW1Y, EW07IW4Y
Product To Product PairsKVWB600HBS, KVUB400GSS, KVUB600DSS, KVWB400DSS, KXD4630YSS, KVWB600DSS, UVL5430JSS
Optional AccessoriesW10662080
Electrical
Volts120
Hz60
Amps15
Power Cord IncludedYes
Certifications
ULYes
ADA CompliantYes
Features
Hot Surface Indicator LightNo
Automatic Pan DetectionNo
Digital DisplayNo
Downdraft VentNo
Installs Over Built In OvenYes
LP ConvertibleYes - Kit Included
Power BoostNo
Power Outage CompatibleYes
Heating Element On Indicator LightNo
GriddleNo, Optional Accessory
Automatic Pan Size AdjustmentNo
Description
Size In30
Cooktop TypeTraditional
Combinations With OvenKOES527P; KOES530P; KOSC104FSS; KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107
Cooktop Details
Cooktop ConfigurationAll Burners
Center Rear Element Burner Power17000BTU
Center Rear Element Burner TypeHigh Output
Left Rear Element Burner Power6000BTU
Left Rear Element Burner TypeSimmer
Number Of Cooking Element Burners5
Right Front Element Burner Power10000BTU
Right Rear Element Burner Power7000BTU
Left Front Element Burner Power10000BTU
Center Element Burner Power17000BTU
Controls
Control TypeManual
Control LocationFront
Knob TypeMetal
Configuration and Overview
Fuel TypeGas
Refinements
Kad CooktopADA Compliant; Even-Heat Melt Burner
Depth21.0"
Height3.06"
Maximum Height4.06"
Net Weight53.6 lbs.
Width30.0"
Cutout Depth19.81"
Cutout Height5.25"
Cutout Width28.88"
Carton Depth Inch25.0
Carton Height Inch12.04
Carton Width Inch34.76
