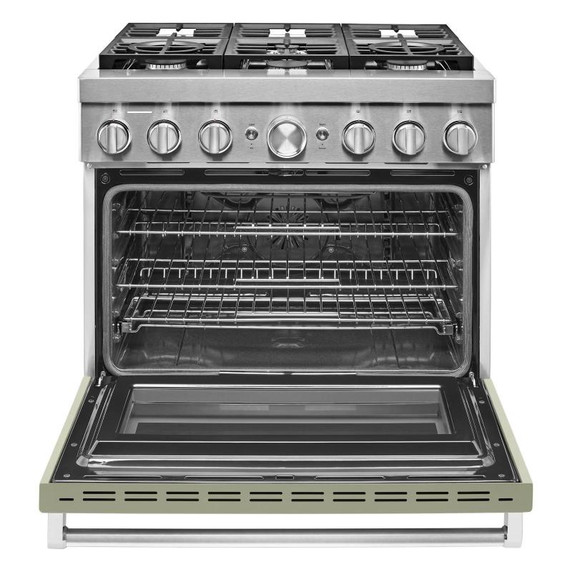

KitchenAid® 36'' Smart Commercial-Style Dual Fuel Range with 6 Burners KFDC506JAV
SKU:
KFDC506JAV
Please contact us for availability
Print:
Colour:
Other
Fuel Type:
Dual Fuel
Cooktop Element Style:
Sealed Burners
Cooktop Control Location:
Front
Cooktop Surface Material:
Porcelain Coated Steel
Oven Cleaning Type:
Self-Clean
Oven Cooking System:
True Convection
Range Type:
Freestanding
KitchenAid

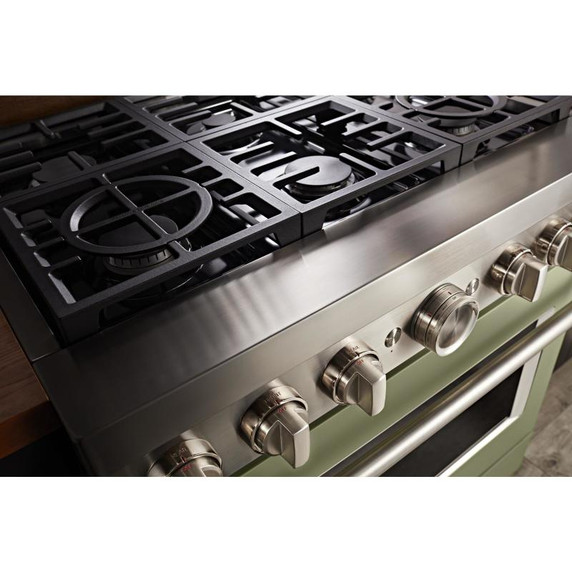

KitchenAid® 36'' Smart Commercial-Style Dual Fuel Range with 6 Burners KFDC506JAV

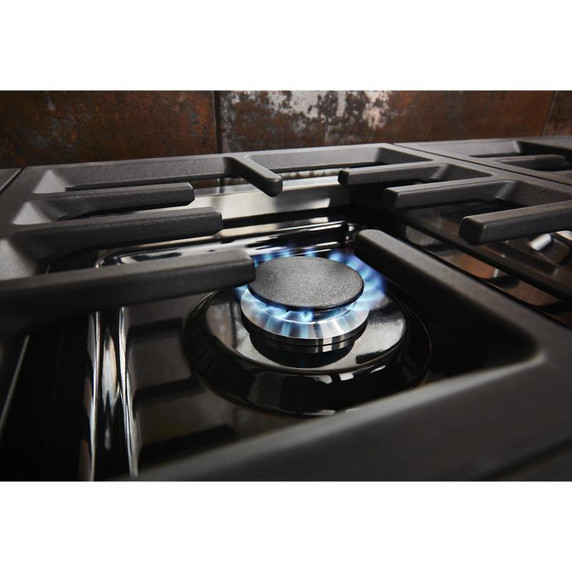

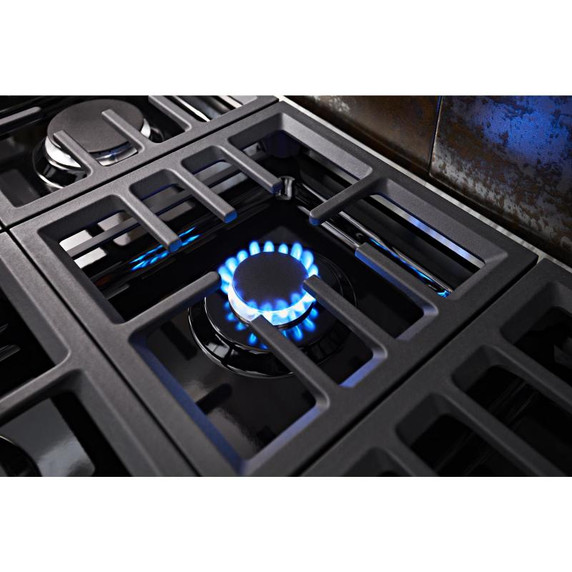

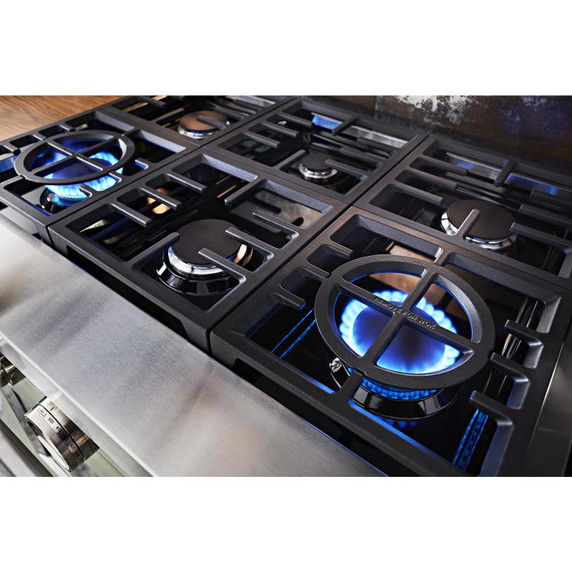

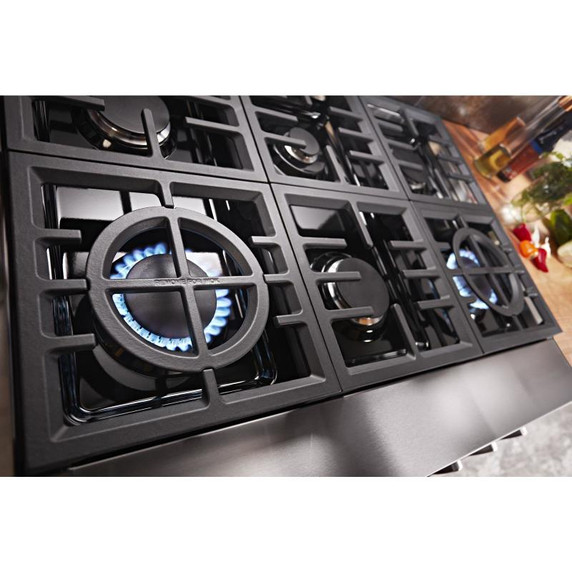

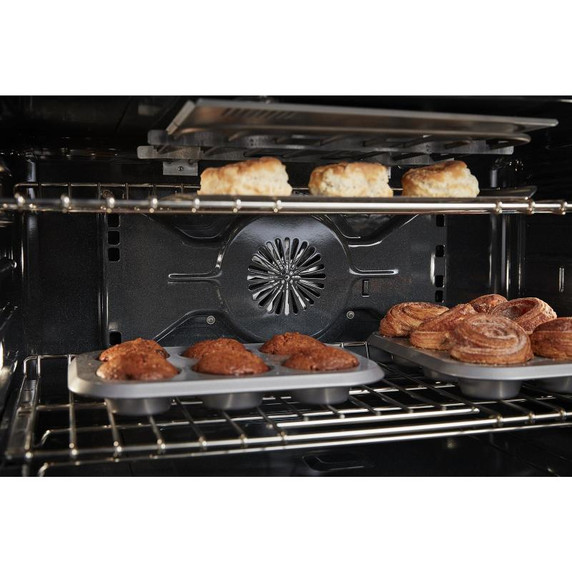

Expand your skills with a 36-inch KitchenAid® Commercial Style Range with 6 burners. This dual fuel range combines a gas cooktop with the even baking of an electric oven. Two 20,000 BTU Ultra Power™ Dual-Flame Burners offer the power and precision to successfully sear, simmer, stir-fry and sauté. Even-Heat™ True Convection helps you achieve more consistent baking and roasting.
Specifications
Specifications
Country Of OriginUSA
Dishwasher SafeYes
Matte Finish Vs Satin FinishMatte Finish
Cast Iron Vs PorecelainPorcelain Coated Grates
Extended Service Plan ParentEW12IW2Y, EW12IW1Y, EW12IW4Y
Product To Product PairsKVUC606KSS, KVWC906KSS, UVL6036JSS, W10285448, KVWC956KSS, W10115776
Optional AccessoriesW11368841BN, W10285448, W11368841CF, W11368841NE, W11368841RE, W11368841MP, W11368841BO
Electrical
Hz60
Volts240
Power Cord IncludedNo
Amps40
Certifications
ULYes
ADA CompliantNo
CULYes
Star K CertifiedYes
Energy Rating Kwh Year370
Exterior
Handle MaterialMetal
Handle ColorStainless Steel
Handle TypeTowel Bar
Door RemovableYes
Configuration and Overview
Fuel TypeDual Fuel
Controls

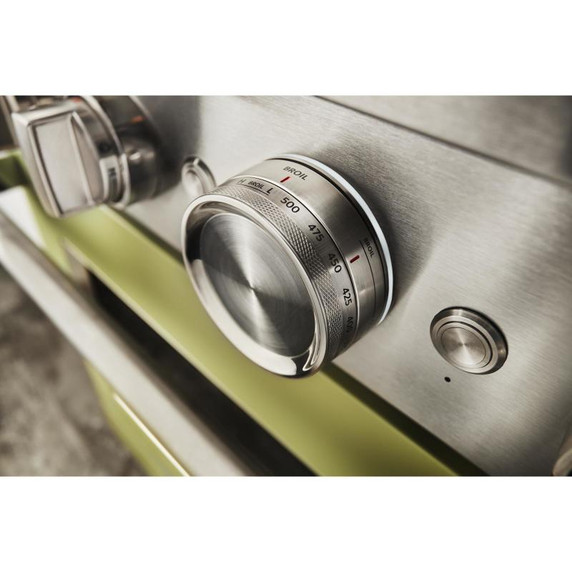

Knob TypeWeighted
Knob ColorStainless Steel
Cooktop Details
Cooktop Element StyleSealed Burners
Left Front Element Burner TypeDual
Number Of Cooking Element Burners6
Right Front Element Burner TypeDual
Auto Re IgnitionYes
Cooktop Control LocationFront
Cooktop Control TypeKnobs
Cooktop Surface ColorBlack
Ignition TypeFlame-Sensing™ Re-ignition
Cooktop ConfigurationAll Burners
Right Rear Element Burner TypeSealed Burner
Center Front Element Burner Power15000BTU
Center Front Element Burner TypeStandard
Center Rear Element Burner Power5000BTU
Center Rear Element Burner TypeSealed Burner
Left Front Element Burner Power20000BTU/14000LP
Left Rear Element Burner Power15000BTU/11000LP
Left Rear Element Burner TypeSealed Burner
Right Front Element Burner Power20000BTU/14000LP
Right Rear Element Burner Power15000BTU/11000LP
Number Of Grates6

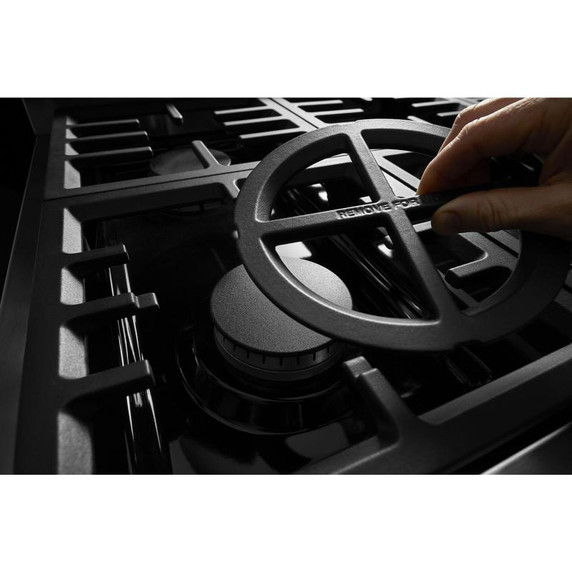

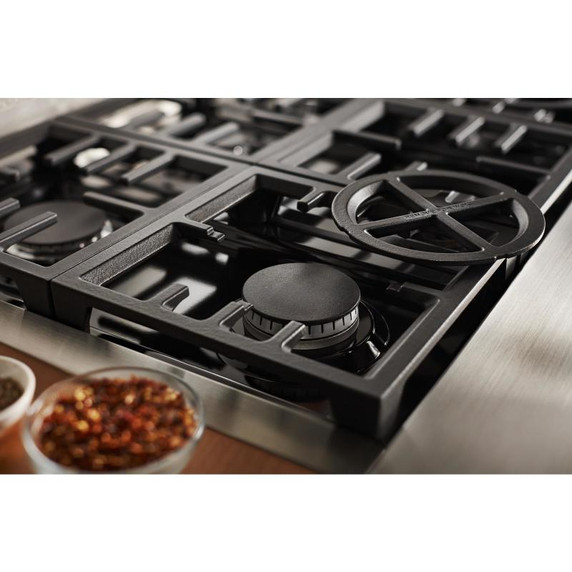

Grate DetailsDishwasher Safe; Individual; Matte Finish; Porcelain Coated Cast Grates
Features
Hot Surface Indicator LightNo
LP ConvertibleYes
Automatic Convection Conversion Temperature AdjustYes
Natural Gas ConvertibleYes
GriddleN/A
Power Outage CompatibleYes
Heating Element On Indicator LightNo
Compatibility
Works WithAmazon Alexa; Android; Google Assistant; iOS

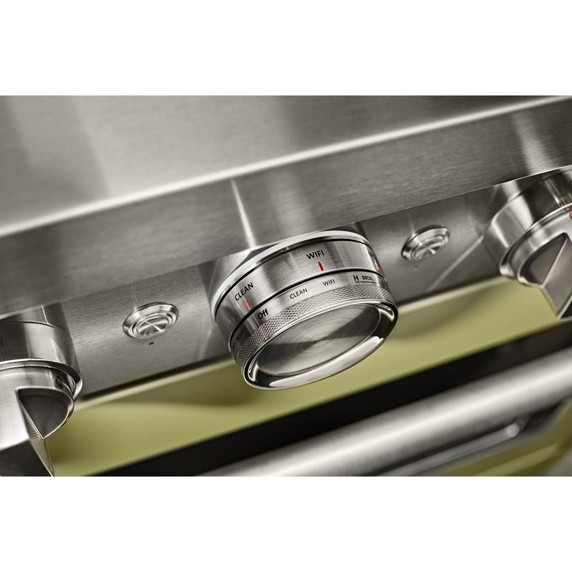

ConnectivityApp; Remote Access; Voice Controlled; WiFi
Configuration
Oven ConfigurationSingle Oven
Range ConfigurationFreestanding
Details
Bake Element Power3000W
Convection FunctionsBake; Broil; Roast
Cooktop Surface MaterialPorcelain Coated Steel
Hidden Bake ElementYes
Interior ColorBlack
Oven Cleaning TypeSelf-Clean
Oven Control Knob ColorStainless Steel
Oven Control Knob TypeMetal
Oven Control LocationFront Control

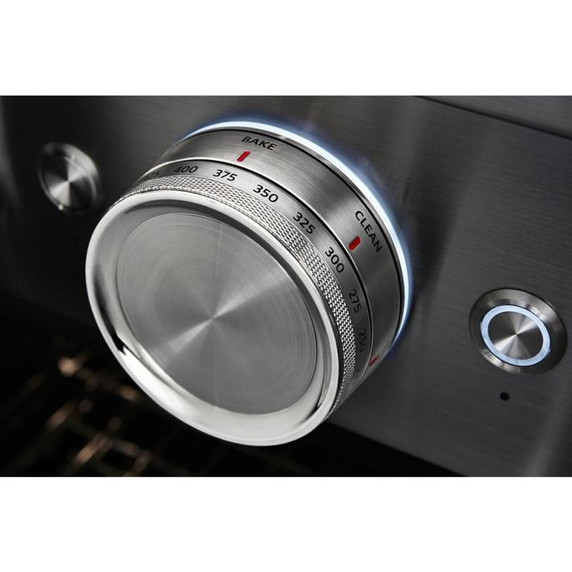

Oven Control TypeKnobs
Oven Cooking SystemTrue Convection
Oven Light Switch LocationOven Control
Oven Light TypeHalogen
Rack Guide TypeMolded
Broiler LocationTop Center
Number Of Oven Lights3
Oven Interior Depth In Inches16.3
Oven Rack TypeGliding Roll-Out; Standard (Both)
Number Of Oven Racks3
Oven Interior Width In Inches29.9
Broiler Element Power5500W
Convection Element Power Watts1600
Convection Element TypeTrue-Bow Tie
Description
Size In36
Range TypeFreestanding
Energy
Annual Energy Usage Kwh370
Dimensions
Carton Depth35.5"
Carton Height47.6"
Carton Width41.8"
Depth Closed Excluding Handles27.75"
Depth Closed Including Handles30.25"
Depth With Door Open 90 Degree46.5"
Gross Weight444.0 lbs.
Height36.0"
Maximum Height37.5"
Minimum Height36.0"
Width35.88"
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width36.0"
Capacity FT3 (cubic feet)5.1
