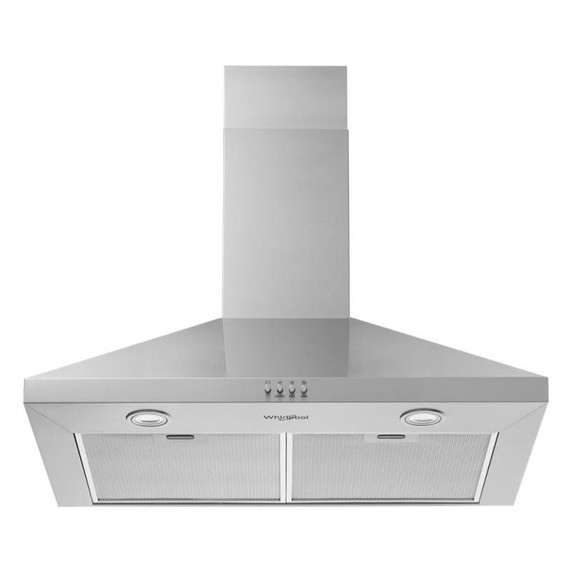

Whirlpool® 30" Chimney Wall Mount Range Hood WVW53UC0LS
3-Speed, 400 CFM Motor Class (Performance varies based on installation. Resources available at aham.org.)Helps remove smoke, odor and moisture with 400 CFM Motor Class hood venting that helps keep your kitchen clean. Three fan speeds provide the right amount of ventilation for every meal you prepare.
Grease filterThe grease filter helps trap unwanted grease and helps remove odors.

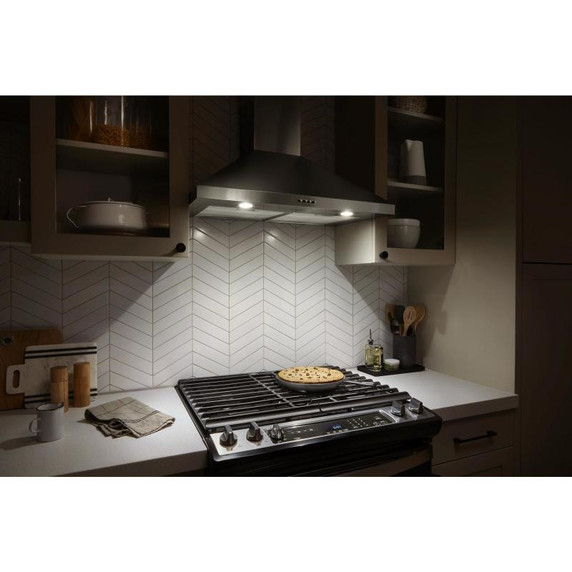

LED Task LightingEfficient LED task lighting makes it easy to see what you're cooking by casting an even and bright glow on your cooktop.
65K BTU Cooktop ThresholdHandle the heat and cooking power of a gas cooktop with up to 65K total BTUs or any electric cooktop.
7.5 Sones Sound Level at high speed (When configured for outside ventilation. As published by aham.org.)Stay focused on cooking and making memories in the kitchen, even when venting at the highest speed. At maximum speed, sound level is 7.5 Sones. (When configured for outside ventilation. Published by aham.org.)
Push Button ControlsUse Push Button Controls to easily control fan speed and cooktop lighting at the push of a button.
ADA CompliantWhen the range hood is wired to operate from a dedicated standard electrical wall switch, this hood meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all. See install instructions for ADA compliance for more details.
Convertible Ventilation (recirculating or vented)A convertible design allows for installation that can be vented externally or internally. When internal venting, recirculation passes the air through charcoal filters (sold separately) to trap grease and odors before pushing the air back into the home.
Optional Recirculation Kit (non-vented/duct-free)This hood can be installed without needing to vent outside. Recirculation passes the air through filters to trap grease and odors before pushing the air back into the home. Recirculation kit sold separately. Part number W11548458.
6" Round Damper IncludedHelp regulate the flow of air through the chimney with the included 6" round damper (part number W10446915).
Optional Chimney Extension Kit AvailableExtends chimney height for ceilings over 9'. See installation instructions for details.
Electrical
Volts120
Hz60
Certifications
ULYes
Energy Star QualifiedNo
Description
Size In30
Hood TypeWall Mount
Specifications
Country Of OriginMexico
Extended Service Plan ParentEW04IW1Y, EW04IW2Y, EW04IW4Y
Optional AccessoriesW11548459, W10446915, EXTKIT18FS
Product To Product PairsWEG750H0HV, WGG745S0FS, WCE97US0KB, WCI55US0JB, YWFC315S0JW, YWEE515S0LW, WEG515S0LV, WEG750H0HZ, YWEEA25H0HZ, WCE97US0KS, WEG515S0LS, YWEE750H0HB, YWGE745C0FS, YWEE745H0LZ, WCI55US0JS, YWEE515S0LV, YWEE515S0LB, WCE55US0HS, YWEE515S0LS, YWEE750H0HZ, WEG750H0HB, YWEE750H0HW, YWFC150M0JB, YWFE745H0FH, YWFC150M0JW, WCE77US0HB, WEG750H0HW, YWFC315S0JS, YWFE515S0JS, WCE77US0HS, YWFE745H0FS, WCE55US0HB, YWEE750H0HV, WEGA25H0HZ
Ventilation System
Duct DirectionVertical
Duct Outlet Size In6
Duct TypeRound
VentingExterior or Recirculating
Exhaust Vent LocationTop
Cfm Motor Class400
Sound Max Speed Sones7.5
Auto FunctionNo
FiltersAluminum Mesh Filter
Duct Length42.0
Blower Motor
Features
Task Light TypeLED
Task LightingYes
Night Light Type
Btu Threshold65 K
Controls
Control TypeManual
Control LocationFront
Carton Depth14.0"
Carton Height25.5"
Carton Width34.0"
Depth17.9"
Gross Weight34.0 lbs.
Maximum Height42.3"
Minimum Height28.6"
Width30.0"
