Whirlpool® 36-inch Electric Ceramic Glass Cooktop with Two Dual Radiant Elements WCE77US6HS
SKU:
WCE77US6HS
Please contact us for availability
Print:
Colour:
Stainless Steel
Fuel Type:
Electric
Cooktop Element Style:
Ceran
Control Location:
Front
Whirlpool

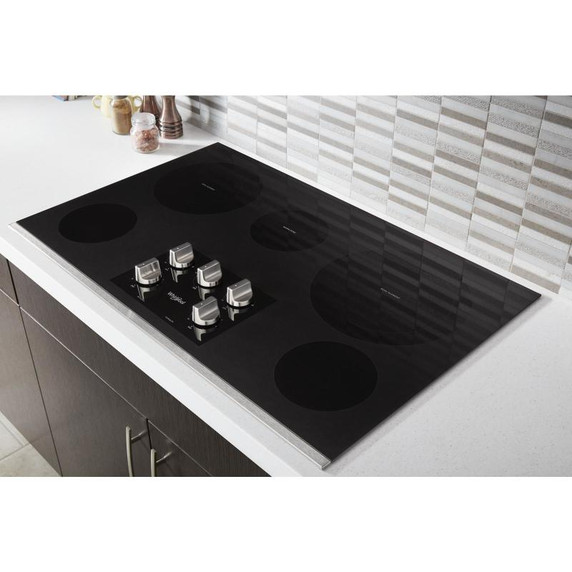

Whirlpool® 36-inch Electric Ceramic Glass Cooktop with Two Dual Radiant Elements WCE77US6HS
Cook all your family's favorites at once and clean up quick with a 5-burner cooktop designed to make the most of your mealtime routine. Two FlexHeat™ dual radiant elements give you more flexibility and the Warm Zone element keeps food warm while you're finishing the rest of the meal. Then, easily wipe messes off the ceramic glass surface.
Specifications
Specifications
Country Of OriginUSA
Optional AccessoriesW10355051B
Extended Service Plan ParentEW05IW4Y, EW05IW2Y, EW05IW1Y
Product To Product PairsWVW53UC6HV, UVL6036JSS
Electrical
Hz60
Volts240
Power Cord IncludedNo
Amps40
208v CompatibleYes
Certifications
ULYes
ADA CompliantYes
Cooktop Details
Right Rear Element Burner TypeDual
Cooktop ConfigurationAll Burners
Cooktop Element StyleCeran
Left Rear Element Burner TypeStandard
Number Of Cooking Element Burners5
Center Rear Element Burner Power100W
Center Rear Element Burner TypeWarming
Left Front Element Burner TypeStandard
Right Front Element Burner Size6in.
Right Front Element Burner TypeStandard
Center Rear Element Burner Size6in.
Left Front Element Burner Size6in.
Right Rear Element Burner Size12in./9in.
Right Front Element Burner Power1200W
Left Front Element Burner Power1200W
Left Rear Element Burner Power3000/1900W
Left Rear Element Burner Size10in./6in.
Right Rear Element Burner Power3000/1900W
Features
Heating Element On Indicator LightYes
GriddleN/A
Hot Surface Indicator LightYes
Power Outage CompatibleNo
LP ConvertibleNo
Automatic Pan DetectionNo
Digital DisplayNo
Downdraft VentNo
Installs Over Built In OvenYes
Power BoostNo
Configuration and Overview
Fuel TypeElectric
Description
Size In36
Cooktop TypeTraditional
Combinations With OvenWOS11EM4; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS51ES4; WOS52EM4; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7; WOS97EC0; WOS97ES0; WOSA2EC0
Controls
Control TypeManual
Control LocationFront
Knob TypeDishwasher Safe
Refinements
Whr CooktopADA Compliant
Dimensions
Depth22.88"
Height5.25"
Maximum Height5.25"
Net Weight44.0 lbs.
Width36.31"
Cutout Depth20.38"
Cutout Width34.56"
Carton Depth Inch25.0
Carton Height Inch9.25
Carton Width Inch40.75
